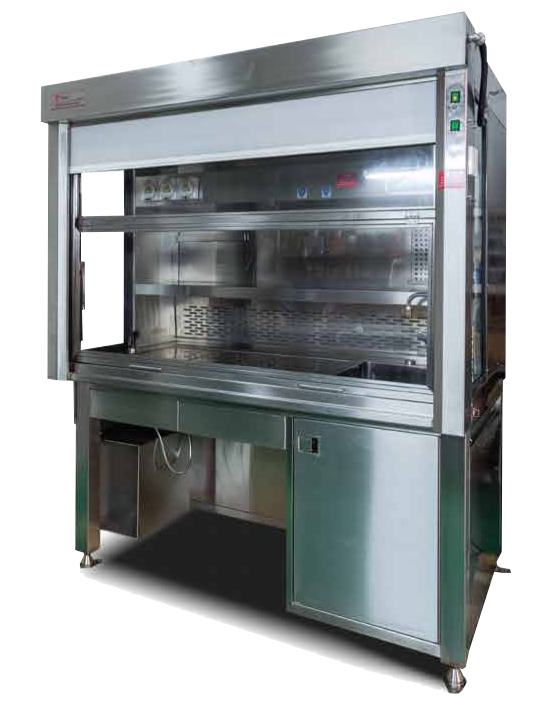

GROSSING STATION,
EMEC B-Series

The B-Series grossing workstation provides special features to allow grossing of fresh & potentially infectous samples. Features include HEPA filtered exhaust to capture infectious particles, height adjustable splash shield & UVC light for surface decontamination after grossing together with UVC shield to protect users from the UVC radiation.

Product Specification

Able To Customise

No matter the size of your work space or nature of your operation, EMEC grossing stations can be customised precisely to suit your needs, or choose from our standard models.



Pathology Workstation

Laboratory safety is an ever growing concern particularly with regards to exposure to chemicals and fumes. Emec Technology is commited to safety in the laboratory by providing hospital pathology equipment, using the latest technology and designs ensuring safety, efficient and comfortable environment for your laboratory personnel.



Air Processing to Suit Your Situation

The B-Series workstation is equipped with a back & downdraft ventilation system ensuring the operator is completely protected from harmful formaldehyde fumes. The B-Series is also fitted with a high efficiency particulate air filter (HEPA) and option for carbon filters which safely neutralize the harmful fumes.


Standard Features

  • Back and down draft high volume exhaust
  • Fixed height work surface
  • Deep integral sink with removable perforated cover plate
  • Cold water outlet with standard or wrist blade handle and vacuum breaker
  • Powerful light giving clearly illuminated work surface
  • Twin IP65 water resistance socket outlet for plugging in appliances
  • Integral inch/cm ruler
  • High quality stainless steel construction
  • Hands free operated waste disposal and water outlets
  • HEPA filtered exhaust & internal fan blower
  • Stainless steel paper towel holder and magnetic instrument bar
  • Formalin dispenser and collecting tank
  • UVC light and motorised shield
  • Heavy duty waste disposal 0.5Hp
  • Height adjustable splash shield


Operational Feactures

  • Hand free dictation system with digital recording
  • Mixer water outlet with vacuum breaker
  • Velocity Alarm

B-Series Grossing Station Specification

Dimension 1600mm wide x 2100mm high x 800mm deep
Length can be customised as per user request
Work Surface
  • 900mm high for fixed models
  • 860-1050mm for elevating models
Sink 350mm x 430mm x 250mm deep
Filters Activated Carbon Filter & HEPA Filter
Electrical
  • 240v 50 Hz, 1 Phase, 5 Amps
  • Requires 13 amp power supply, facility supplied RCD recommended
Plumbing
  • 1/2" industrial grade flexible hose supplied for hot and cold water connection
  • 1 1/2" ID UPC Heavy Duty flexible hose for connection to drainage
Temperature Operational : 10deg C - 32deg C
Humidity Operational : 10-95%
biosafety grossing station B-Series


Note : Specifications are subject to change without prior notification
