GROSSING STATION,
EMEC T-Series

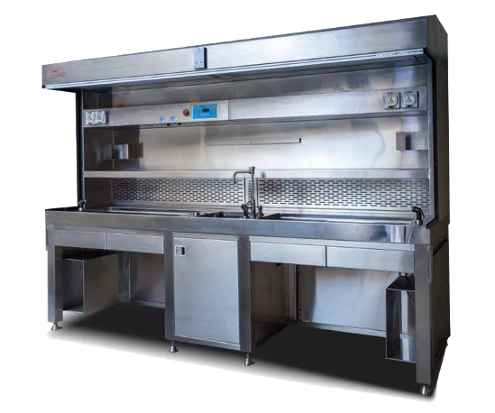

The T-Series dual grossing workstation is a grossing station designed to fully support dual dissection areas. with a common auxiliary work area in the middle and sample storage for supplies, the T-Series easily handles both the typical daily work load and any demand spike. All features are within easy reach while harmful formalin fumes and odors are efficiently drawn away from the operator leaving a safe, clean, bright and odor-free environment.

Product Specification

Able To Customise

No matter the size of your work space or nature of your operation, EMEC grossing stations can be customised precisely to suit your needs, or choose from our standard models.



Pathology Workstation

Laboratory safety is an ever growing concern particularly with regards to exposure to chemicals and fumes. EMEC Technology is committed to safety in the laboratory by providing hospital pathology equipment, using the latest technology and designs ensuring safety, efficient and comfortable environment for your laboratory personnel.



Air Processing to Suit Your Situation

The T-Series workstation is equipped with a back & downdraft ventilation system ensuring the operator is completely protected from harmful formaldehyde fumes. The T-Series can be fitted with a re-circulating exhaust system with high efficiency pottasium permanganate filters or carbon filters which safely neutralize the harmful fume or can be fitted for external exhaust.


Standard Features

  • Back and down draft high volume exhaust
  • Fixed height work surface
  • Deep integral sink with removable perforated cover plate
  • Cold water outlet with standard or wrist blade handle and vacuum breaker
  • Powerful light giving clearly illuminated work surface
  • Quad IP65 water resistance socket outlet for plugging in appliances
  • Integral inch/cm ruler
  • High quality stainless steel construction
  • Hands free operated waste disposal and water outlets
  • Heavy duty waste disposal 0.5Hp
  • Stainless steel paper towel holder and magnetic instrument bar
  • Formalin dispenser and collecting tank


Operational Features

  • Dual Sink
  • Hand free dictation system with digital recording
  • UV Light complete with blind
  • Mixer water outlet with vacuum breaker
  • Motorised Height adjustable up to 1050mm worktop height
  • Velocity Alarm
  • Monitor, keyboard arm and desktop compartment

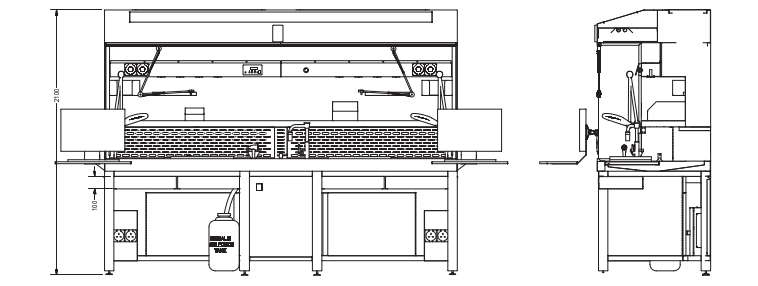

T-Series Grossing Station Specification

Dimension 2800 wide x 2100mm high x 800mm deep
Length can be customised as per user request
Work Surface
  • 900mm high for fixed models
  • 860-1050mm for elevating models
Filters Activated Carbon Filter
Electrical
  • 240v 50 Hz, 1 Phase, 5 Amps
  • Requires 13 amp power supply, facility supplied RCD recommended
Plumbing
  • 1/2" industrial grade flexible hose supplied for hot and cold water connection
  • 1 1/2" ID UPC Heavy Duty flexible hose for connection to drainage
Temperature Operational : 10deg C - 32deg C
Humidity Operational : 10-95%


Note : Specifications are subject to change without prior notification
