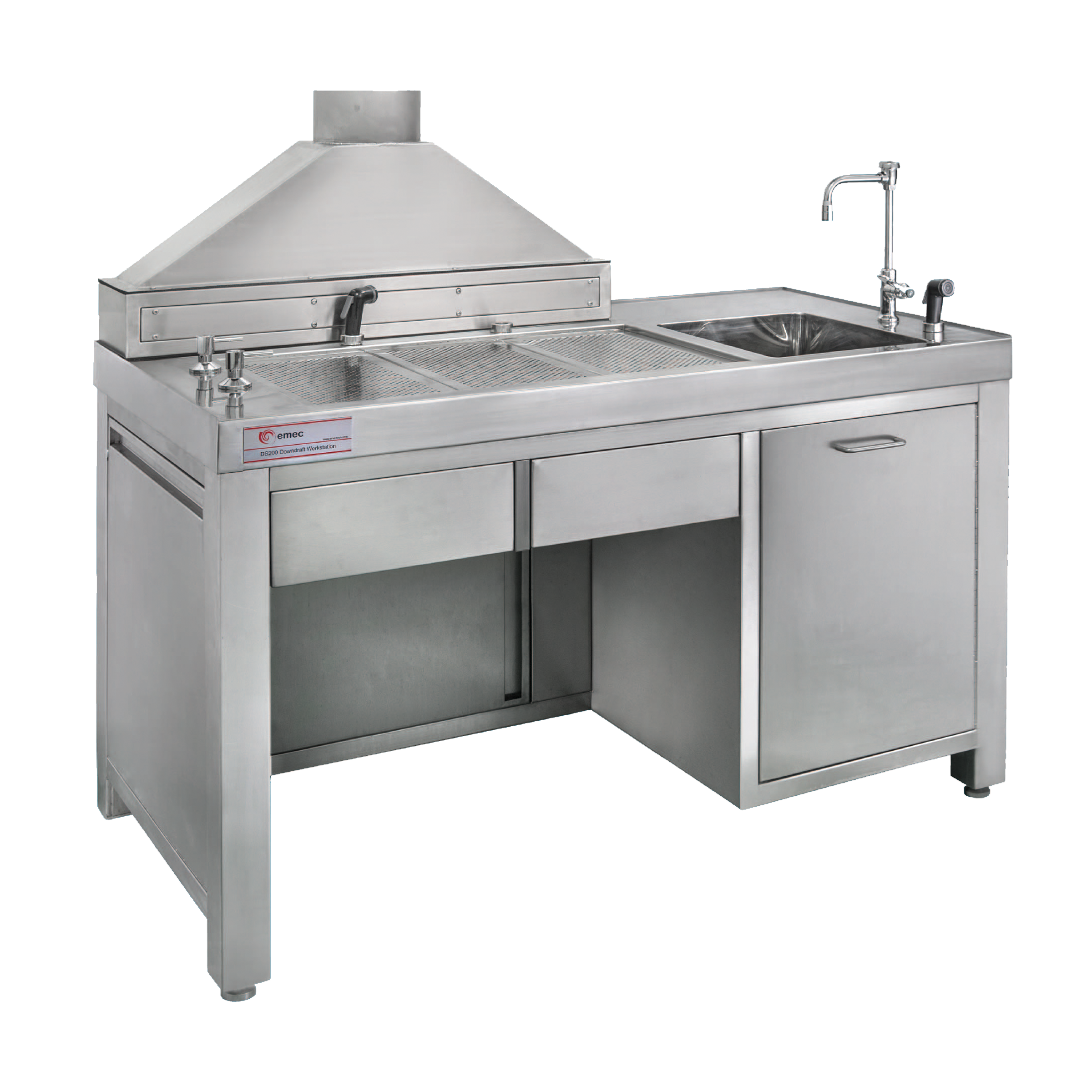

DOWNDRAFT TABLE,
EMEC D150

EMEC D150 Workstation is equipped with a downdraft ventilation system ensuring the operator is completely protected from harmful fumes. The workstation is either exhausted or can be fitter with recirculating exhaust system with efficiency filters which safety neutralize the harmful fumes, particularly xylene and formalin.

Product Specification

Material Specification

Body Tray : 2.0mm thk, welded and polished 316 stainless steel
Sump : 2.5mm thk, welded and polished 316 stainless steel
Waste Piping : 316 Stainless Steel

Standard Feature

  • 1 no hand spray set with 2 meter flexible hose
  • 2 nos IP56 water proof 13 amp switch socket
  • Connection to building exhaust

Technical Specification

Water Connection


Water Supply : 22mm Copper tube
Recommended water pressure : 1.0 Bar min and 2.0 max
Waste Out : 50mm 2" BSP Screwed connection (Stainless Steel)
Cold Water : 25 litres/minute
Hot Water (if required) : 12 liters/minute


Option

  • Adjustable Height 750mm to 1050mm

Extraction Air

  • 1000m3/hr at 120 Pascals
  • 250mm Diameter

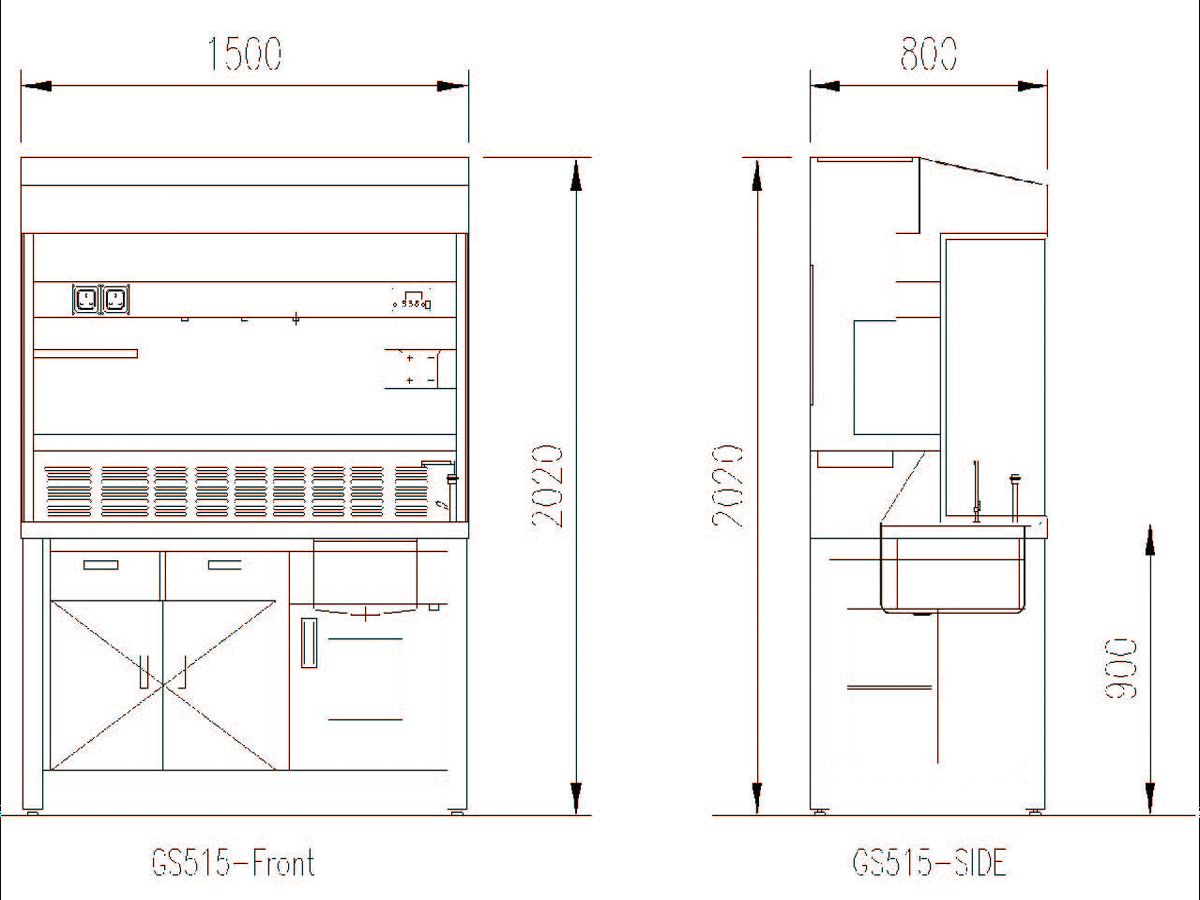

Technical Drawing

G515 Gross Station Specification

Dimension 150cm wide x 202cm height x 80cm deep
Work Surface
  • 900mm high for fixed models
  • 860-1100mm for elevating models
Sink 350mm x 400mm x 230mm deep
Filters 2 formaldehyde neutralizing potassium permanganate filters
Electrical
  • 240v 50 Hz, 1 Phase, 5 Amps
  • Requires 13 amp power supply, facility supplied RCD recommended
Plumbing
  • 1/2" industrial grade flexible hose supplied for hot and cold water connection
  • 1 1/2" ID UPC Heavy Duty flexible hose for connection to drainage
Temperature Operational : 10deg C - 32deg C
Humidity Operational : 10-95%

Ordering Information

Part No Description
G312 Grossing Station, Manually Controlled, Fixed height: 120cm wide
G315 Grossing Station, Manually Controlled, Fixed height: 150cm wide
G512 Grossing Station, Proximity Controlled Fixed height: 120cm wide
G515 Grossing Station, Proximity Controlled Fixed height: 150cm wide
G515E Grossing Station, Proximity Controlled Motorized elevation work-surface 150cm wide
CAM-01 Flexible Camera Arm
PPF-120 Replacement filters for G312 and G512
MAG-01 Magnifying Lamp 240v
EXC-120 Exhaust collar for connection to facility ducting for G312 and G512
EXC-1500 Exhaust collar for connection to facility ducting for G300 and G500
EXC-500E Exhaust collar for connection to facility ducting for G312 and G500E
