CHEMICAL STORAGE CABINET

Corrosive cabinets are available in one, two, and three-door models to go under fume cupboard or bench. Mid-height (1200mm) models are available in three standard widths.

Product Specification

Information

Both Flammable and Corrosive cabinets are available in one, two, and three-door models to go under fume cupboard or bench. Mid-height (1200mm) models are available in three standard widths.


In addition, taller cabinets can be built on request, as high as 1650mm. We welcomes customer requests for custom cabinet sizes or non-standard fittings.


Corrosive and Flammable storage cabinets conform to AS1940 standards.

Standard Cabinet Construction

Flammable Class 3 cabinets are made of double-wall steel panels, fully welded and powder coated white. Adjustable shelving, adjustable feet, self-closing doors with lockable handles, and a 50mm vent/spigot are included.

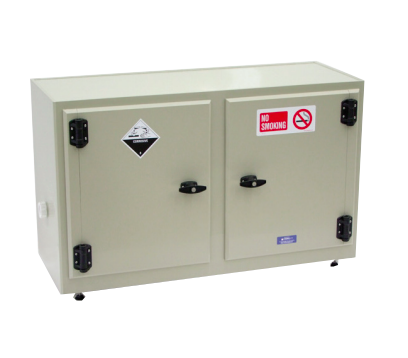

Corrosive Class 8 cabinets are made of 6mm & 10mm beige Polypropylene with a 15mm thick door. Shelving is at a fixed height but each shelf is removable. Adjustable feet, selfclosing doors with lockable handles, and a 50 or 30mm vent/ spigot are included.


For custom Corrosive cabinet designs in excess of 1200mm in height, a powder-coated blue cabinet is lined on its interior surfaces with 3mm PVC. Shelves of PVC are fixed in location but separately removable, and a rubber seal provides a tight fit at the doors.

Standard Sizes and Configurations

Flammable Class 3 Unit Type Dimensions Format
Under-Bench Cabinets & Under-Fume Cupboard Cabinets 30 Litre w580 x H765 x D430 Single-door
60 Litre W1120 x H765 x D430mm Double-door
80 Litre W1420 x H765 x D430mm Double-door
100 Litre W1720 x H765 x D430mm Triple-door
Upright (tall) Cabinets 60 Litre W600 x H1200 x D500mm Single-door
100 Litre W700 x H1200 x D500mm Double-door
160 Litre W1000 x H1200 x D500mm Double-door
Corrosive Class 8 Unit Type Dimensions Format
Under-Bench Cabinets & Under-Fume Cupboard Cabinets 30 Litre W580 x H765 x D430mm Single-door
60 Litre W1120 x H765 x D430mm Double-door
80 Litre W1420 x H765 x D430mm Double-door
100 Litre W1720 x H765 x D430mm Triple-door
Upright (tall) Cabinets 60 Litre W600 x H1200 x D500mm Single-door
100 Litre W700 x H1200 x D500mm Double-door
160 Litre W1000 x H1200 x D500mm Double-door
